SPL mesh filter is suitable for filtering lubricating oil, fuel oil and other lubrication systems of various types of marine and land diesel engines, as well as in petroleum, electric power, chemical and other industries.

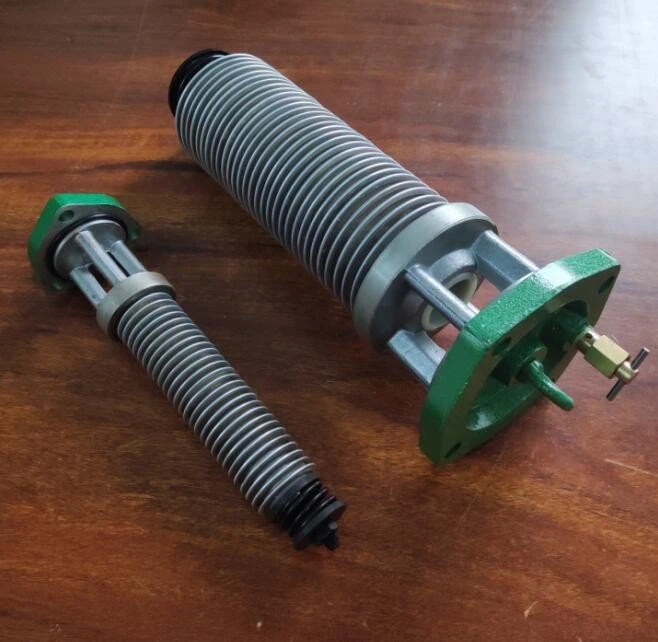

The product is reliable in operation, convenient in maintenance, and does not require other power sources. The filter element is a filter made of metal wire mesh, which has the characteristics of high strength, large oil flow capacity, ensuring filtering accuracy, and easy cleaning. The SPL double cylinder series can be used in Realize non-stop conversion and cleaning during the operation of the host.
Product information
| Model | Dia | Flow rate | Mesh size | |
SPL Mesh Filter | ID | OD | ||
SPL15 | 15 | 2 | 20 | 40 |
SPL25 | 25 | 5 | 30 | 65 |
SPL32 | 32 | 8 | ||
SPL40 | 40 | 12 | 45 | 90 |
SPL50 | 50 | 20 | 60 | 125 |
SPL65 | 65 | 30 | ||
SPL80 | 80 | 50 | 70 | 155 |
SPL100 | - | 80 | ||
SPL125 | 125 | 120 | 90 | 175 |
SPL150 | 150 | 180 | ||
SPL200 | 200 | 320 | ||
Note:
Maximum working temperature is not more than 95℃
The maximum working pressure is not more than 0.8MPa
Filter element cleaning pressure drop is not more than 0.15MPa
According to the user's application, there is a stainless steel shell
SPL mesh filter technical parameters:
Dia | Installation form | Dimensions | Disassembly distance of filter element | Pipe connection size | ||||||
Threaded connection | Flange connection | |||||||||
DN | H | B | L | H1 | DW | D | D1 | n | d | |
15 | C | 328 | 180 | 196 | 260 | M30x2 | - | - | - | - |
25 | D | 315 | 232 | 230 | 270 | - | - | - | - | - |
C | 207 | 260 | - | - | - | - | - | |||
32 | C | 380 | 207 | 260 | 330 | - | 60*60 | 44*44 | 4 | 9 |
40 | C | 462 | 261 | 314 | 385 | - | 66*66 | 45*45 | 4 | 9 |
50 | X | 447 | 425 | 410 | 435 | - | 86*86 | 64*64 | 4 | 11 |
C | 447 | 400 | 410 | 435 | - | 86*86 | 64*64 | 4 | 11 | |
65 | X | 590 | 450 | 460 | 535 | - | 100*100 | 75*75 | 4 | 11 |
C | 590 | 420 | 460 | 535 | - | 100*100 | 75*75 | 4 | 11 | |
80 | X | 775 | 525 | 492 | 685 | - | 116*116 | 92*92 | 4 | 13 |
100 | X | 800 | 825 | 565 | 685 | - | 190 | 158 | 8 | 15 |
125 | X | 855 | 910 | 605 | 760 | - | 215 | 183 | 10 | 15 |
150 | X | 890 | 1000 | 990 | 790 | - | 240 | 208 | 12 | 15 |
200 | X | 1065 | 1155 | 1180 | 945 | - | 310 | 273 | 12 | 17 |
Note: 1. Mesh specifications: 40×20, 65×30, 90×45, 125×60, 155×70, 175×90
2, the filtering accuracy is optional according to user requirements.
3. There are two kinds of stainless steel mesh and copper mesh.
