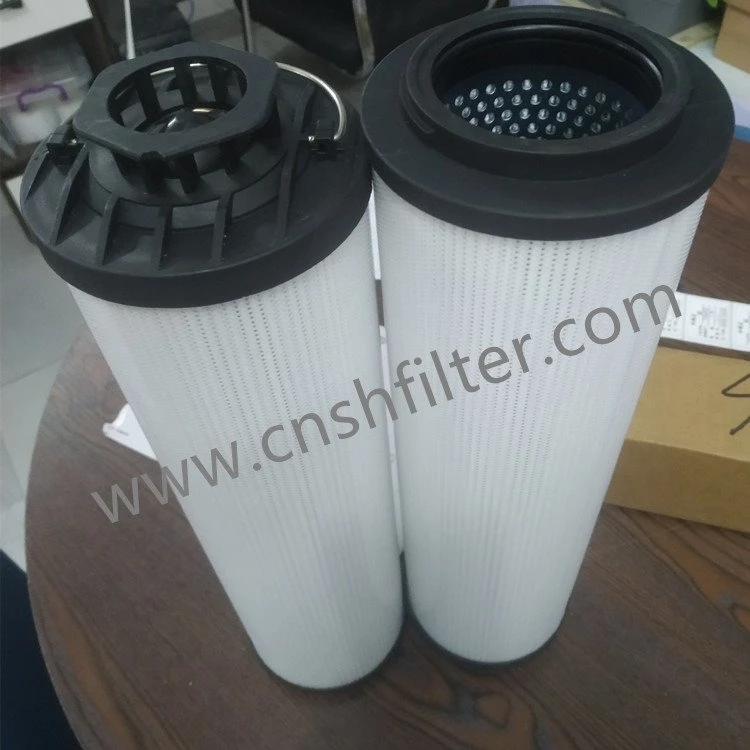

Replacement For HYDAC 0660R020ON Pipeline Filter Element

Filter material: The material of the water filter element filter series is generally selected to be the same as that of the connected process pipeline. For different service conditions, filters made of cast iron, carbon steel, low alloy steel or stainless steel can be considered.

Calculation of filter resistance loss: water filter, under the general calculation of rated flow rate, the pressure loss is 0.52 ~ 1.2kpa

HD-TZ216 filter technical parameters:

1. Nominal pressure: ≤0.8Mpa

2. Nominal diameter: 6mm

3. Experimental pressure: 1.0Mpa

4. Applicable medium: water

5. Applicable temperature: ≤60℃

Performance characteristics of HD-TZ216 water sample filter:

1. The shell is made of plexiglass shell

2. When replacing the filter element, the lower end cover needs to be unscrewed

3. A check valve is installed at the outlet of the water sample filter to prevent the meter electrode from losing water

4. Connection method: screw connection
